Audiophile Dante to Analogue XLR Stereo Output interface

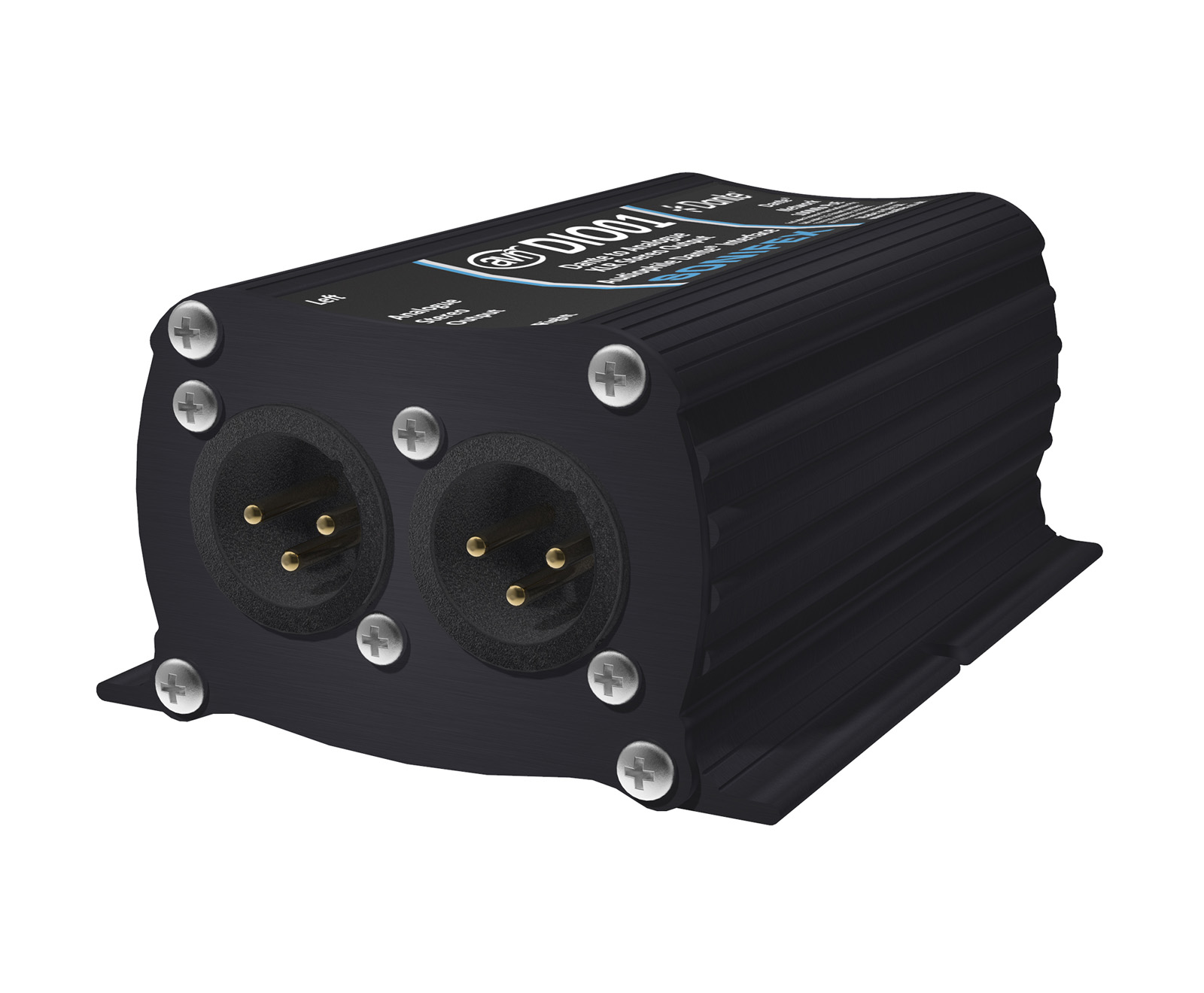

The AVN-DIO01 is a Dante AoIP network to analogue XLR stereo output converter in the Sonifex DIO range of Dante input/output devices. It features two balanced analogue XLR outputs and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

Product Details
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
The A/D and D/A circuitry offers 120dB of dynamic range - ten times better than similar competing products. All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
• 2 x balanced XLR analogue outputs.
• Neutrik EtherCon® Ethernet connection.
• Fully Dante compliant device.
• AES67 compatible.
• Dante Domain Manager compliant.
• Ultra-high quality, wide dynamic range D/A conversion.
• Powered via PoE (Power over Ethernet).
Technical Specification
Output Impedance <200Ω balanced
0dBFS Line-Up +18dBu
Frequency Response 20Hz to 20kHz, +0/-0.5dB (600Ω load, ref 1kHz)
THD+N <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW
Dynamic Range 120dB, 20kHz BW
Crosstalk <-110dB
Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding PCM 16, PCM 24, PCM 32
Standard 802.3at Type 1
Class 0
PD Power Range 0.44 W to 12.94 W
Typical PSE Power Usage 6 W
Max PSE Power Usage 15.4 W
Dimensions 10.6cm (W) x 7.3cm (D) x 4.3cm (H)
Weight 0.2kg
