Designed to switch 4 stereo paths from one input (or set of inputs) to another in the event of loss of audio. The unit is ideal at transmitter sites, or after the master output of a studio, to switch to a backup audio source should the main source fail.
Each stereo pair has individual settings and controls and when stereo signals are linked, the foremost pair determines the switching characteristics and controls to be used. Each stereo pair has an AES LED that shows the status of the digital audio on that channel and a Selection LED to show that input is currently being sent to each respective output.
Two signal presence LEDS for the left and right inputs of each stereo pair indicate the input level of the channels.
The unit can switch between sources manually or automatically at the push of a button. If switching manually, silence detection is disabled and the user chooses when to switch using the main or backup buttons. If switching automatically, the unit switches between the two sources automatically upon the detection of silence. Each pair can be set to switch manually or automatically and the current setting is indicated by the Mode LED. Link/Select buttons are used to group channels together to access multichannel operation and switch simultaneously. Each pair has a Link/Select button which illuminates blue when active. Pressing and holding the first Link/Select button with any other Link/Select button causes all inputs up to that point to be selected.
The RB-DSD8 has a ‘slave mode’ that allows you to connect two RB-DSD8 units and control them simultaneously from one unit.
The RB-DSD8 has been designed with dual redundant power supplies. This means that if either power supply fails, the other is ready to take over. In the extremely unlikely event that both fail, the unit has been designed with a passive signal path through the main input.
RB-DSD8
8 Channel Automatic/Manual Audio switcher with double PSU

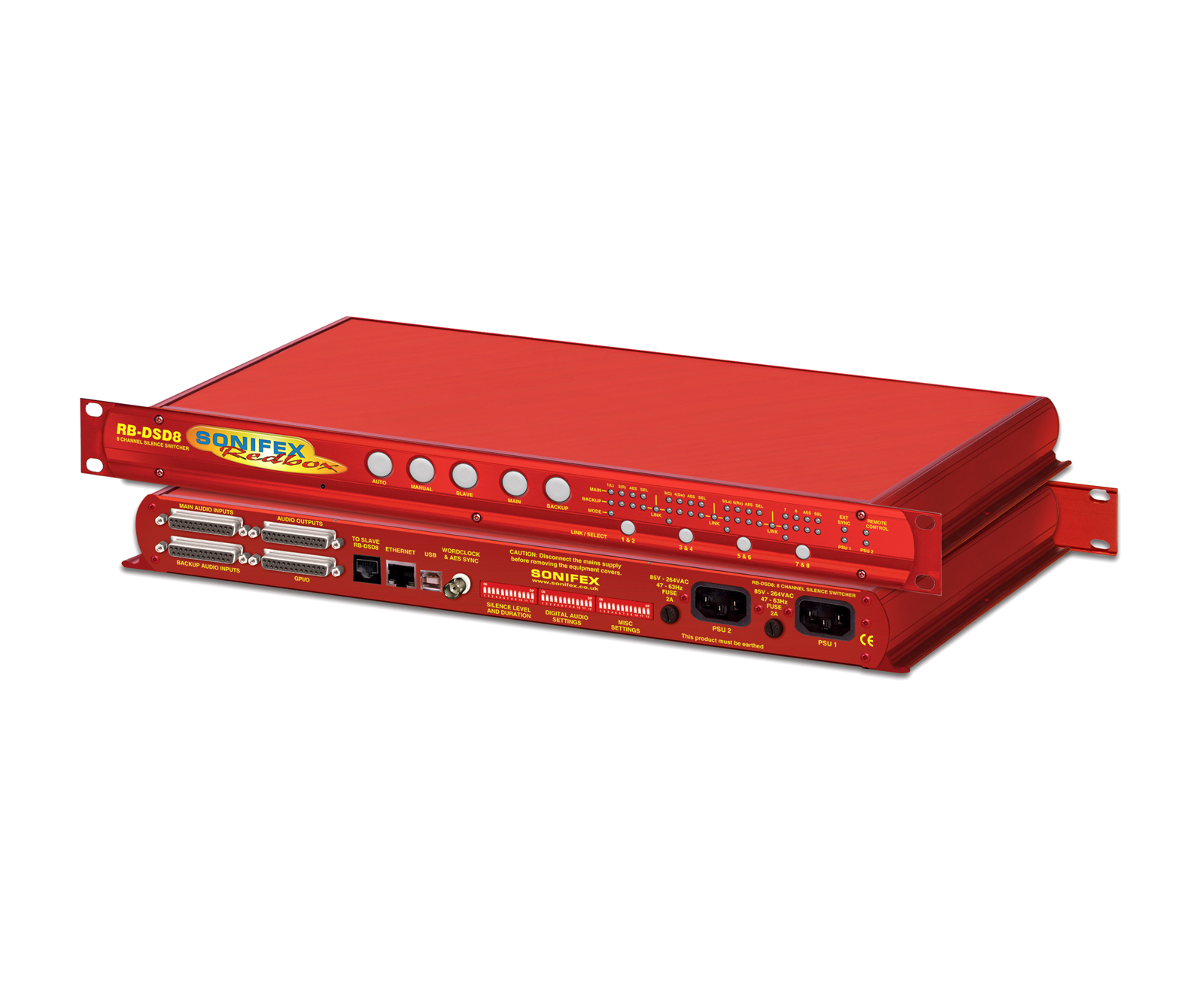

The RB-DSD8 8 channel silence switcher that can accept either analogue or digital inputs. The switching can be handled independently to give 4 stereo silence detectors or they can be linked to handle multichannel audio inputs, e.g. for 5.1 and 7.1 surround systems.
